Typesemi-automatic
Applicationcars and car-derived vans
Power source3 phase (400V)
Runflat/Low profile tyresyes
External rim clampingnot applicable
Internal rim clampingnot applicable
Maximum wheel width406 mm
Max. wheel diameter1143 mm
Power1,1 kW
Weightca. 200 kg
Dimensions (height x depth x width)195 x 120 x 115 cm
Additional optionsWheel lift, RUNFLAT arm

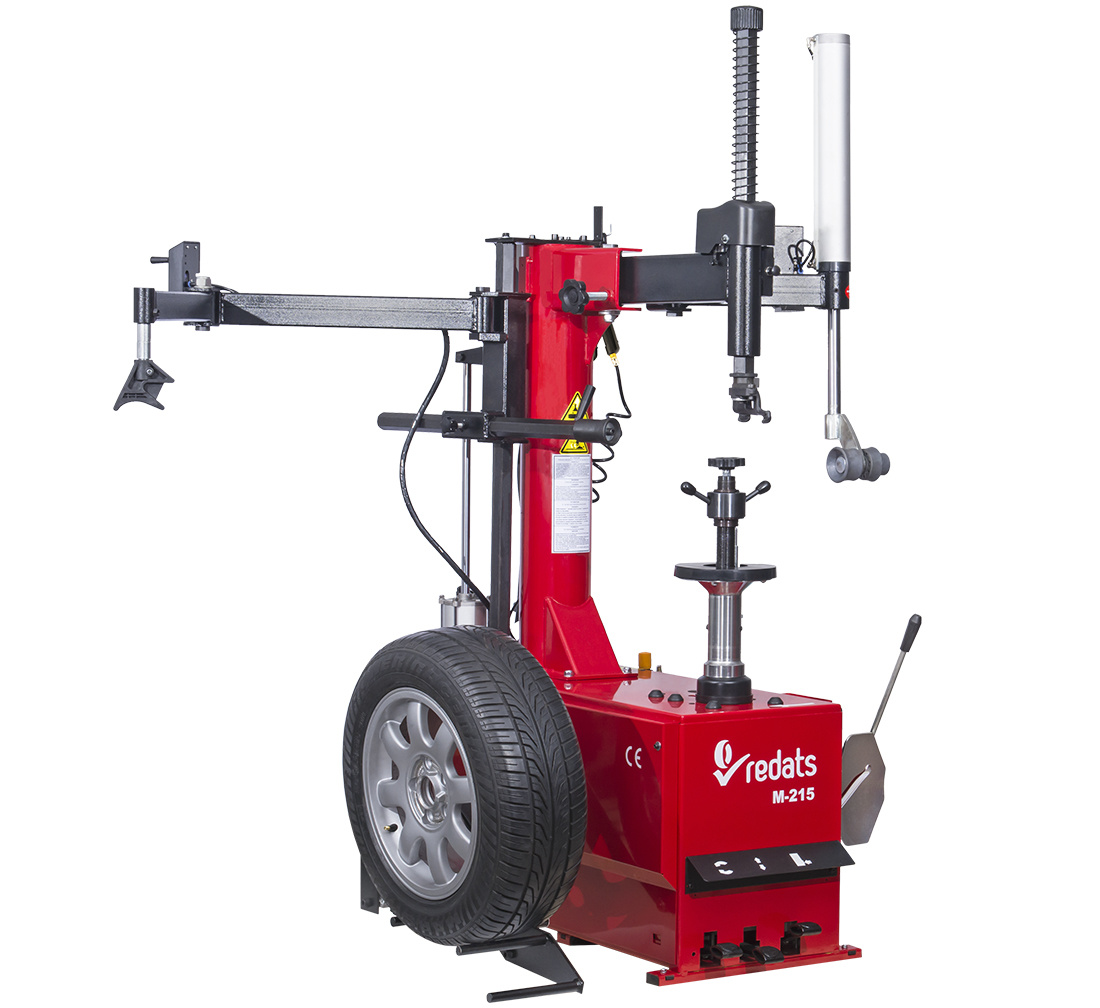

Car tyre changer semi-automatic with a lift RUN-FLAT arm REDATS M-215
- Semi-automatic assembly machine with pneumatic elevator and rotary shaft and with arms for tires RUN FLAT type.
Application
By default, this tyre changer has no turntable. The wheel is mounted on a rotating shaft with an adjustable thread. The thread is responsible for keeping the wheel in position. At the same time, the user can mount it, using a quick release wing nut.
Pneumatic wheel lift

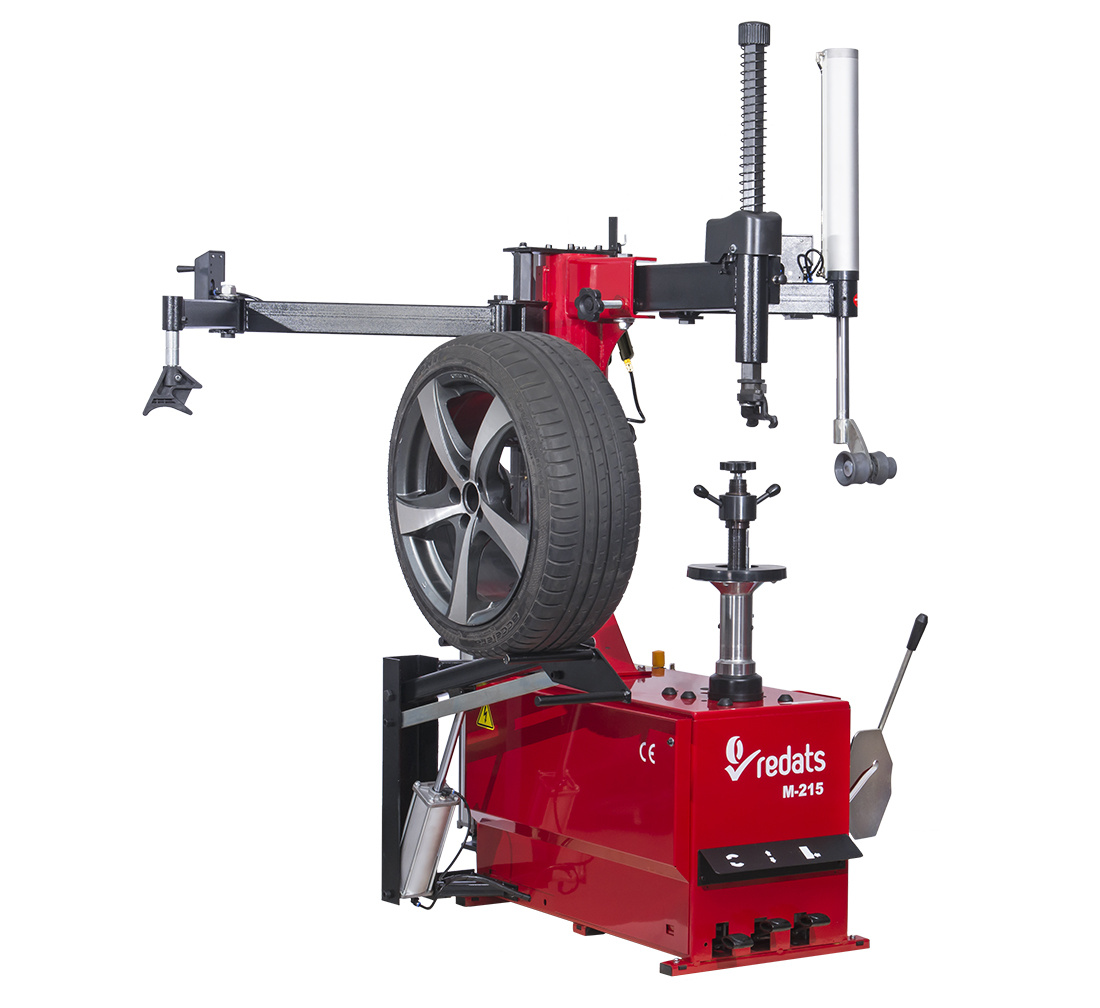

In this tyre changer, one can easily work with larger wheels (max. wheel diameter is 28"). It comes with a special lift that takes the wheel up to the desired height.
Helper arm
This tyre changer comes with a helper arm for low-profile and RUNFLAT tyres. You can adjust them using a joystick. And the separate elements (like 2 rollers and a "third hand" part) mean that tyre mounting/demounting has become way easier.
Brand
Symbol
11-00-94
Producer code
5902730121213
Type
semi-automatic
Application
cars and car-derived vans
Power source
3 phase (400V)
Runflat/Low profile tyres
yes
External rim clamping
not applicable
Internal rim clamping
not applicable
Maximum wheel width
406 mm
Max. wheel diameter
1143 mm
Power
1,1 kW
Working Pressure
8 - 10 Bar
Bead breaker shovel force
2500 kg
Noise level
< 75 dB
Table rotation speed
6 RPM
Turntable max. torque
1078 Nm
Blocking of the arm and head
arm - manual
head - pneumatic
Standard equipment
Oil lubricator + air preparation unit
Tyre inflation gun (electronic)
Quicknut cap with threaded shaft
Helper arms (2x roller)
Tyre lever 500 mm
Composite duckhead + adaptor
Accessories bucket
4 centering cones (sizes: 44 - 67 mm, 65 - 86 mm, 84 - 103 mm, 89 - 137 mm)
Weight
ca. 200 kg
Dimensions (height x depth x width)
195 x 120 x 115 cm
Manufacturer
REDATS
Warranty
24 months
Additional options
Wheel lift, RUNFLAT arm
Warranty (for companies)
12 months
