Product code:13-00-19

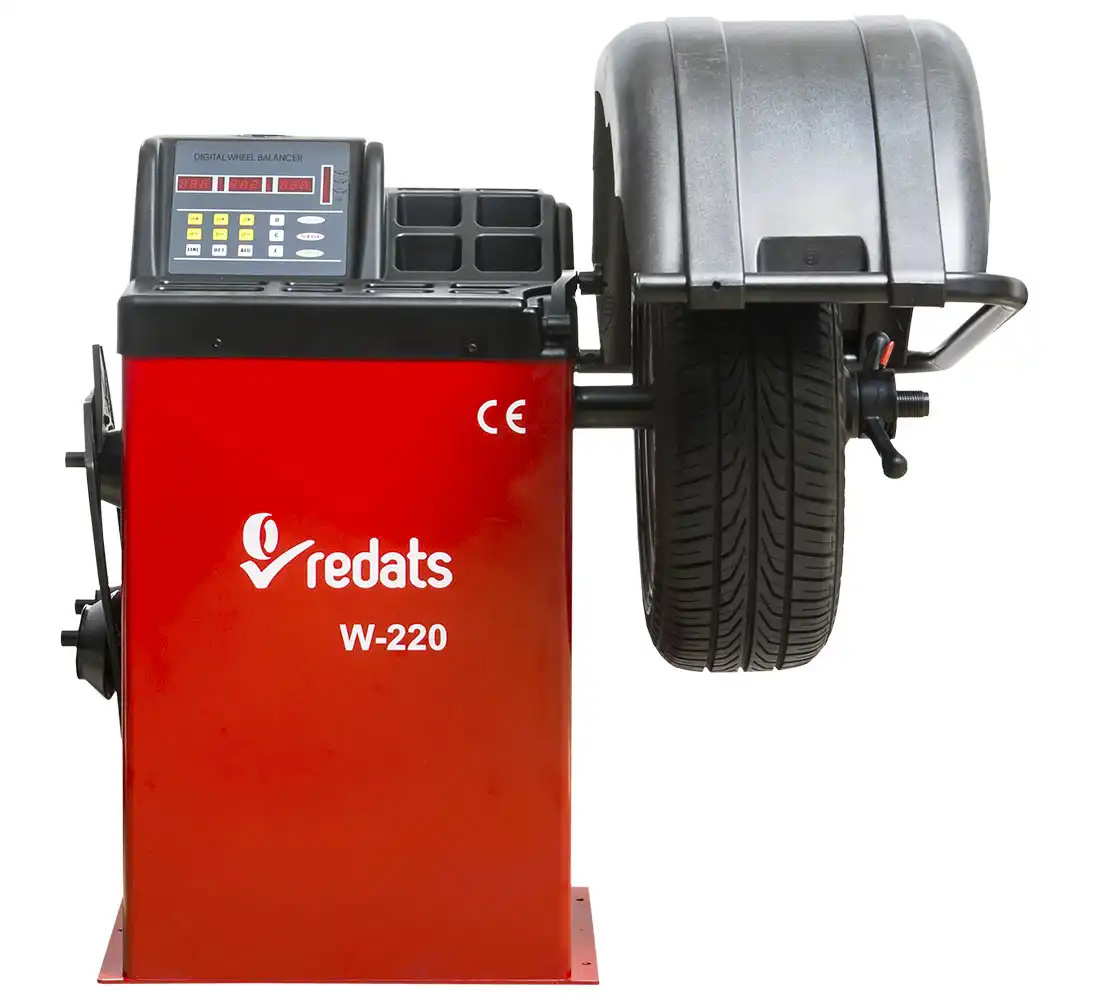

Automatic wheel balancer REDATS W-220

  • REDATS W-220 wheel balancer. Wheel size range: 10-24". Automatic.
Very high stock
Safe shopping

What wheels is it for?
The REDATS W-220 wheel balancer is designed to deal with wheels of cars and car-derived vans:

  • rim diameter: 10-24”
  • max. wheel weight: 65 kg

Automatic - saves a lot of time
This is a fully automatic balancer. It will read out all the wheel parameters, so the operator saves a lot of time.

Extremely easy use!
Learning to operate the balancer takes a few seconds only. The unit shows the imbalanced spot. It comes with an imbalanced spot positioner - electromechanic brake, sound signal and diodes on the control panel.

Working tempo

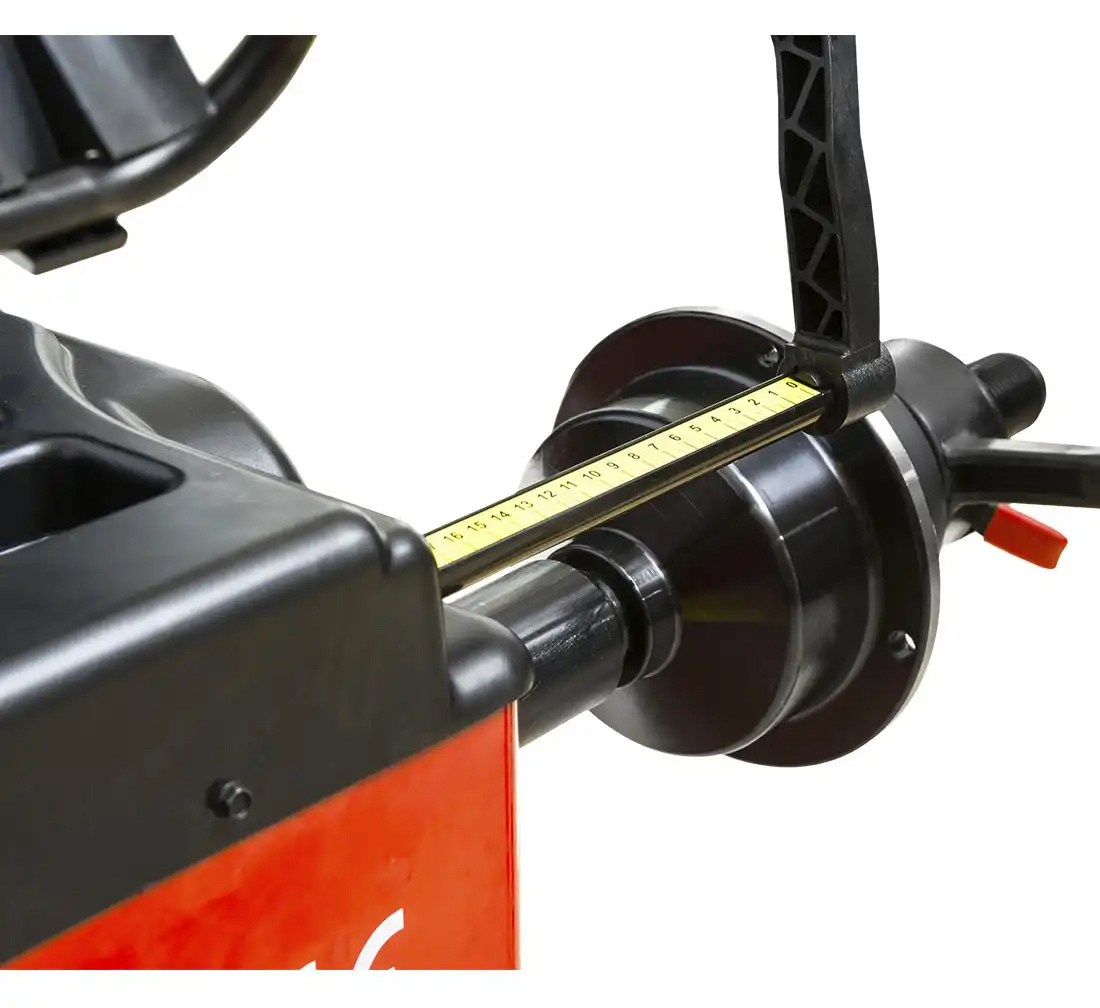

Reading out parameters takes a second only. This means much quicker work. Plus to that, all wheel data (rim diameter, distance) can be read out by a measuring gauge - so there is no risk of errors!

Hassle-free operation
Autocalibration programs are easy to do - it takes just 2 buttons to calibrate (distance gauge, diameter gauge, balancing sensors).


Expert's review:

Radosław: This model is loved for simple operation and reliability. It does the job - balances wheels precisely.

Experts photo
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Automatic wheel balancer REDATS W-220
Compare models
Automatic wheel balancer REDATS W-220
Description
REDATS W-220 wheel balancer. Wheel size range: 10-24". Automatic.
Type
Type
TypeAutomatic
Type
Application
Application
Applicationcars and car-derived vans
Application
Rim diameter
Rim diameter
Rim diameter10" - 24"
Rim diameter
ALU wheel programs
ALU wheel programs
ALU wheel programs3
ALU wheel programs
Power source
Power source
Power source230V 50Hz
Power source
Hidden weight program
Hidden weight program
Hidden weight programYES
Hidden weight program
Max wheel weight
Max wheel weight
Max wheel weight65 kg
Max wheel weight
Measuring cycle time
Measuring cycle time
Measuring cycle time8 seconds
Measuring cycle time
Shaft blocking
Shaft blocking
Shaft blockingElectromechanic brake
Shaft blocking
Imbalance positioning
Imbalance positioning
Imbalance positioningLED lights, sound signal
Imbalance positioning
Automatic data entering
Automatic data entering
Automatic data enteringdiameter; distance
Automatic data entering
Weight
Weight
Weight76 kg
Weight
REDATS.PL
REDATS.PL
REDATS.PL1
REDATS.PL
Extra functions
Extra functions
Extra functions -
Extra functions
Write your opinion
Your opinion:
5/5
Technical specification
Brand
Symbol
13-00-19
Producer code
5902730109129
Type
Automatic
Application
cars and car-derived vans
Rim diameter
10" - 24"
ALU wheel programs
3
Rim width
1,5" - 20"
Power source
230V 50Hz
Hidden weight program
YES
Auto-ALU (choosing the spot for adhering weights)
ALU-S
Voice synthesizer
none
Max wheel weight
65 kg
Measuring cycle time
8 seconds
Shaft diameter
36mm (diameter) x 3mm (thread pitch)
Operators' memory
no
Rotating torque
200 RPM
Noise level
< 70 dB
Min imbalance
1g
Power
0,2 kW
Display
LED
Shaft blocking
Electromechanic brake
Additional options
ALU-S Programme
Autocalibration
Optimisationi

Optimisation is for lowering the number of weights to be mounted onto the rim, so that the tyre is located on a rim i a way that the rim's imbalance is equal to tyre's imbalance, which minimizes the wheel imbalance.

Maximum energy consumption
0,2kW
Lift
no
Imbalance positioning
LED lights, sound signal
Automatic data entering
diameter; distance

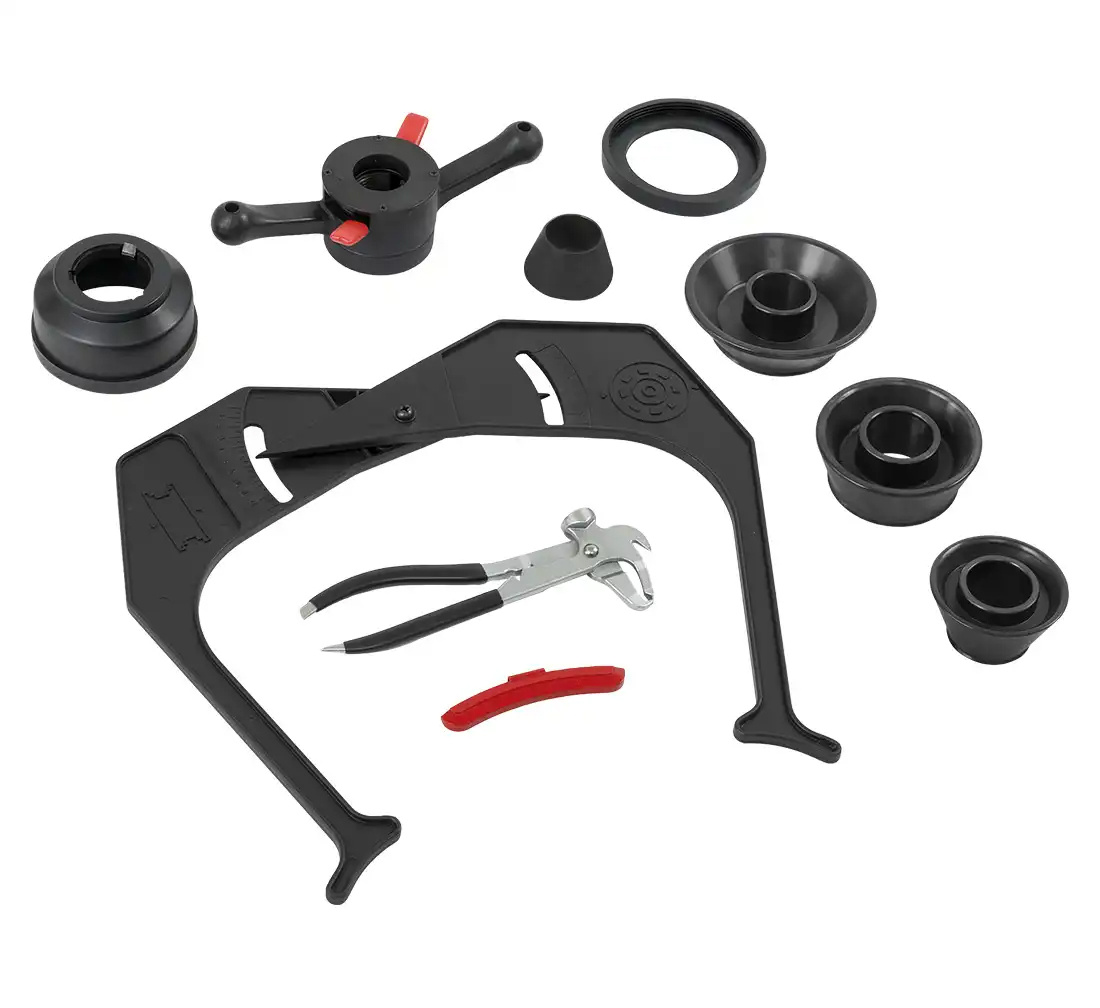

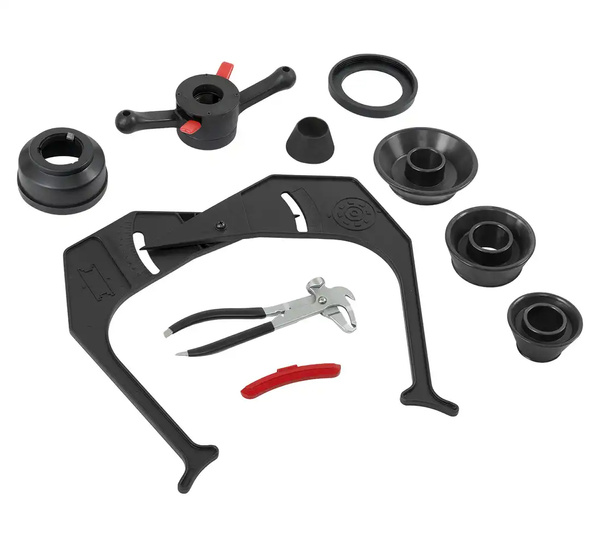

Standard equipment
4x Cones (43-66,65-85,84-102,94-135)
1x Pliers
1x Calibration clip-on weight 100g
1x quick-nut
1x Small bushing
1x Large bushing + rubber
1x plastic caliper
1x threaded shaft 36*3
1 x Paper manual
3x cones hanger
1x wheel cover
Dimensions
1097 x 737 x 1500 mm
Weight
76 kg
Extra functions
-
Manufacturer
REDATS
Warranty
24 months (extension possible)
Warranty (for companies)
12 months (extension possible)
