Metal handle for composite mounting head BUTLER RAVAGLIOLI MONDOLFO HAWEKA
Metal handle for composite mounting head BUTLER RAVAGLIOLI MONDOLFO HAWEKA
+1more
Metal handle for composite mounting head BUTLER RAVAGLIOLI MONDOLFO HAWEKA
Metal handle for composite mounting head BUTLER RAVAGLIOLI MONDOLFO HAWEKA
Metal handle for composite mounting head BUTLER RAVAGLIOLI MONDOLFO HAWEKA
Installationexternal screw spacing 80 mmcentral hole diameter 10 mmhole diameter 8 mm

Metal handle for composite mounting head BUTLER RAVAGLIOLI MONDOLFO HAWEKA

+ Add to compareAdd to shopping list
  • Metal handle for composite mounting head BUTLER RAVAGLIOLI MONDOLFO HAWEKA
For quotation contact us

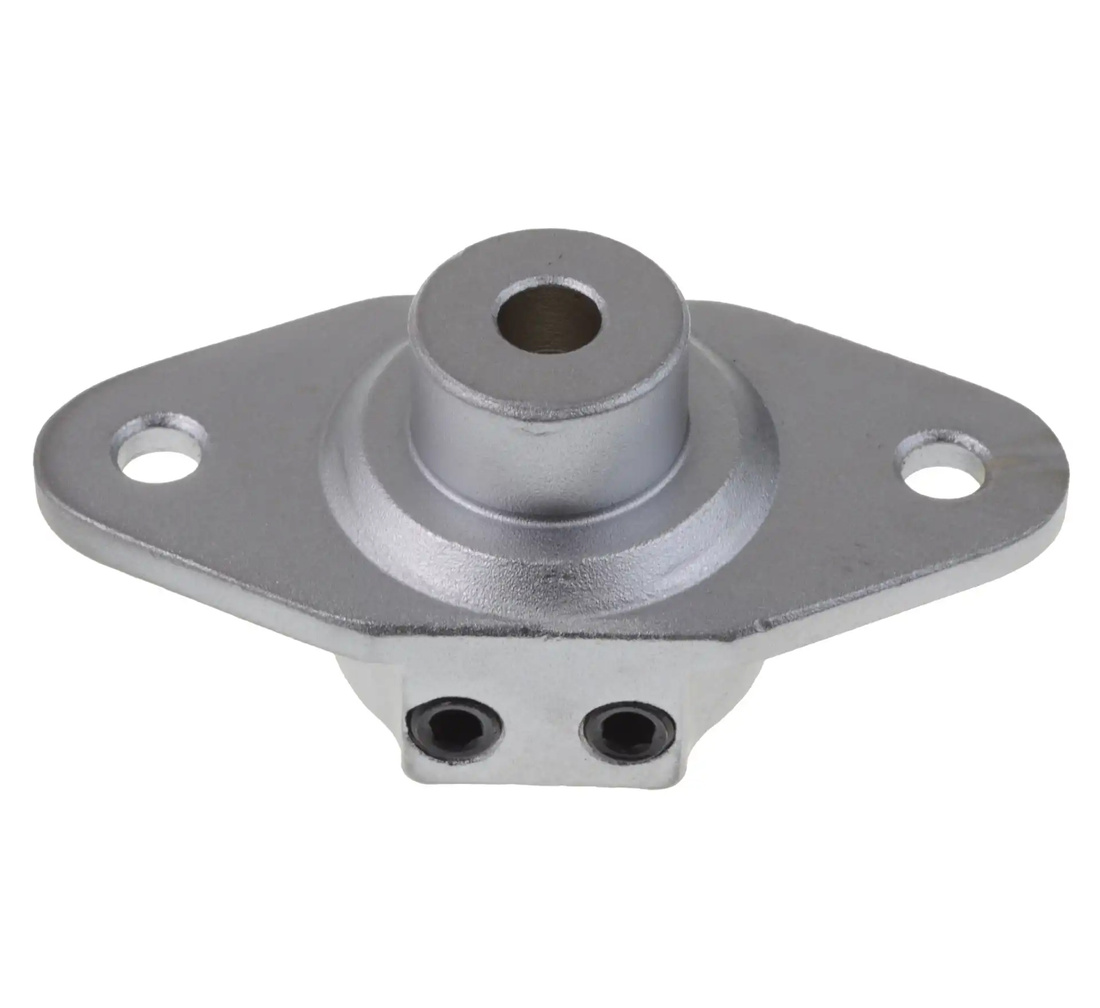

Mounting bracket for composite foot
  • BUTLER
  • RAVAGLIOLI
  • MONDOLFO
  • HAWEKA

For 28mm spindle

Metal adapter connecting the column of the assembly machine and the composite foot. Indispensable when assembling the plastic head into the assembly tools.

Size:

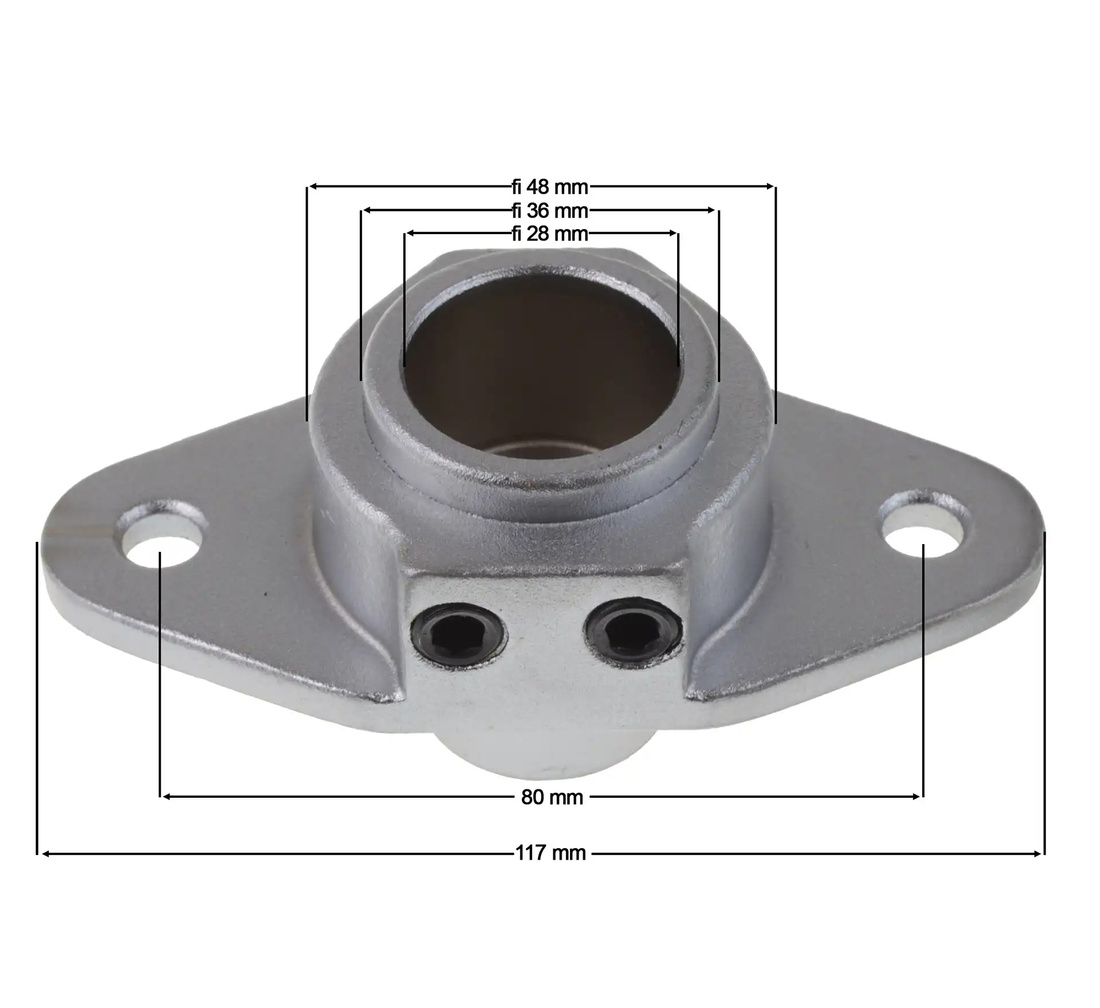

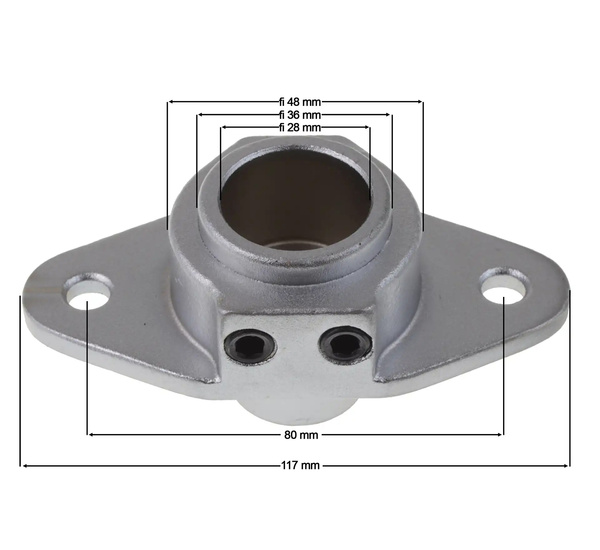

  • spacing of external holes: 80mm
  • outer diameter of holes: 8mm

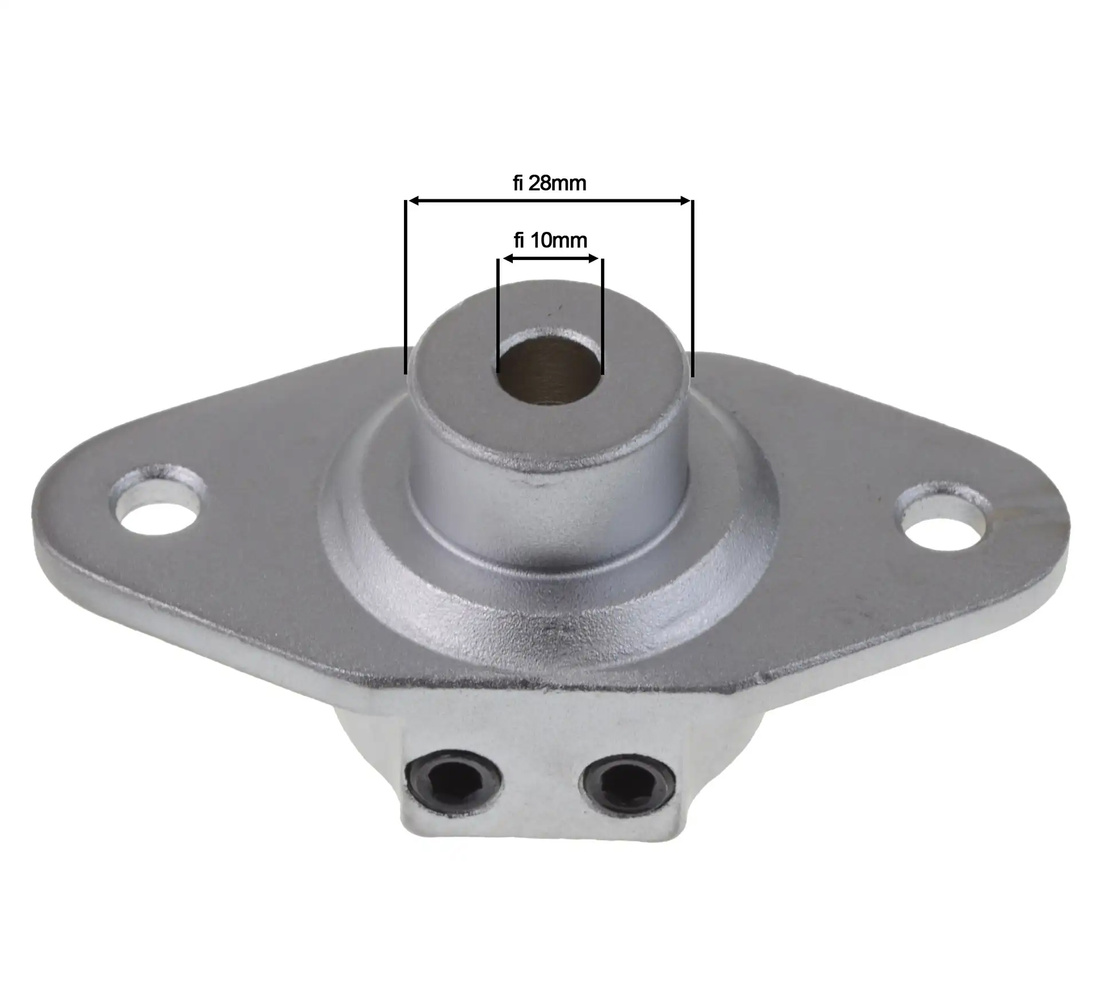

  • central hole diameter: 28mm/10mm
  • length: 117mm
  • width: 50mm
  • height: 50mm
Brand
REDATS
Symbol
12-00-98
Producer code
5902730108399
Series
Accessories
Manufacturer
REDATS
Application
BUTLER
RAVAGLIOLI
MONDOLFO
HAWEKA
Installation
external screw spacing 80 mm
central hole diameter 10 mm
hole diameter 8 mm
Diameter
28 mm [eng]
Length
117 mm
Width
50 mm
Height
50 mm
Warranty
24 months
Warranty (for companies)
12 months
