Automatic two post lift 4t REDATS L-240F 230V

Why recommend this lift to your clients?
This unit can be of great help while working with:

• passenger cars
• delivery vans

Your clients will be using it for suspension and engine removal jobs.

This lift

• saves your clients’ time - it is automatic, so no need to run from one post to another
• will raise passenger cars and light vans - capacity 4000 kg
• will enable your clients to work with wider cars: max. car width is 2500 mm
• will provide your clients with working comfort - even those who are tall - it raises up to 193 cm

Quick facts to share with your clients

• Max. capacity: 4 tons
• Type: automatic
• Arm length scope: 700-1345 mm
• Floor thickness: 30 cm
• Beam: lower
• Power source: 230V
• Max. car width: 2500 mm
• Raising height: 9-193 cm
• Post base dimensions: 380 x 450 mm
• Reinforcing frame: no
• Weight: 610 kg
• Dimensions (width x height) 3365 x 2824 mm

Below - arm setting scope, width, height and other useful data!

Are REDATS lifts durable?
Yes.

WHAT DOES THAT MEAN TO YOUR CLIENTS?
Get to know the facts

• rope covers - they protect the ropes, chain, actuators from dust or dirt
• chain cover - against mechanical damage
• shoes - they provide trouble-free operation of the raising parts

reliability = solutions that let your clients work for years, without problems. Every issue means having to pause the operation = money lost!

Symmetric arms
This lift comes with symmetric arms  - length 700-1345 mm. This means an even easier operation on every car - for instance, while opening the door in a raised car.

Simple work
Your clients will quickly learn how to use the lift - to raise, it takes simple pushing the (UP) button. To decrease it, it takes the lowering button (DOWN).

Quick and easy, right? It also comes with the emergency lowering feature, in case of a blackout.

Trouble-free use for years
Durable chain and perfect part quality mean trouble-free use for many years. Reliability that your clients can trust.

Perfect safety
The limit switch stops the arms, when the vehicle goes up to the max. raising height. This means perfect operation safety for your clients.

How to prepare the floor?
Here’s the floor requirements your clients have to observe:

• floor size 1,5m x 4 m x 30cm
• flat surface
• min. floor thickness: 30 cm
• concrete B25 class
• 28 days - until the fresh concrete dries up

Caution!

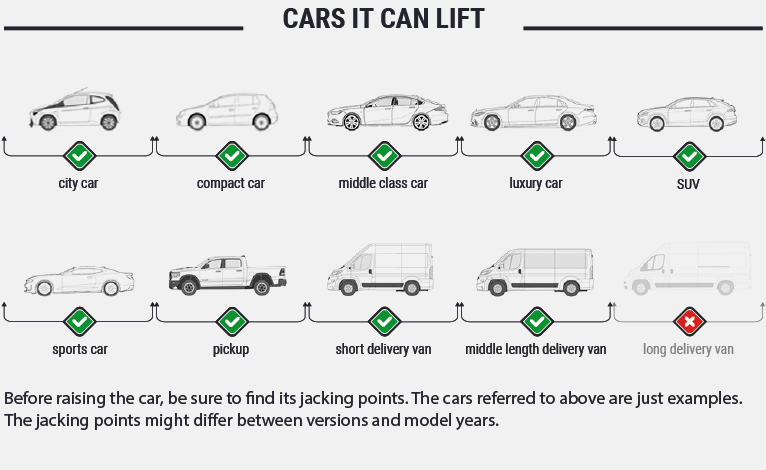

Before raising any vehicle, it’s essential to check the location of jacking points in the underbody!

Important: The user should provide and connect the power supply cable with inlet.

Important:

The user should provide and connect the power supply cable with inlet.
