Product code:15-02-27
New in

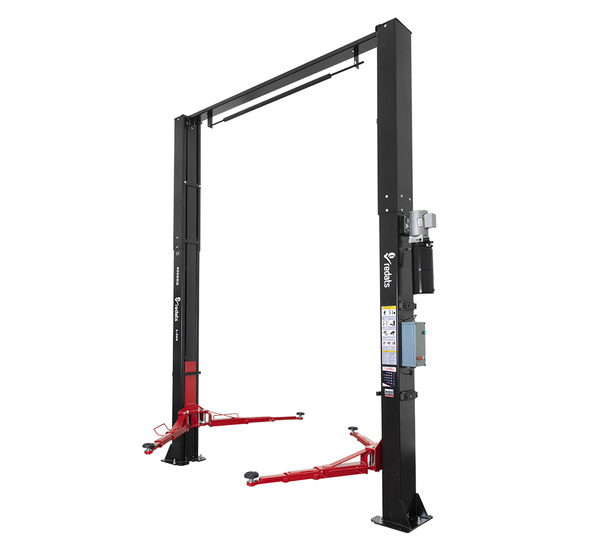

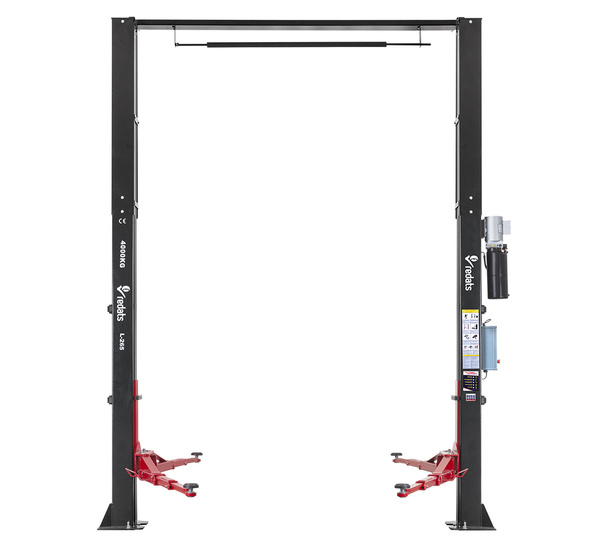

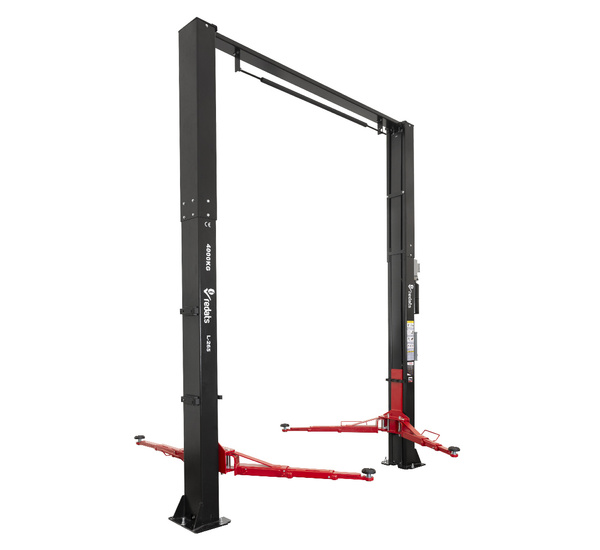

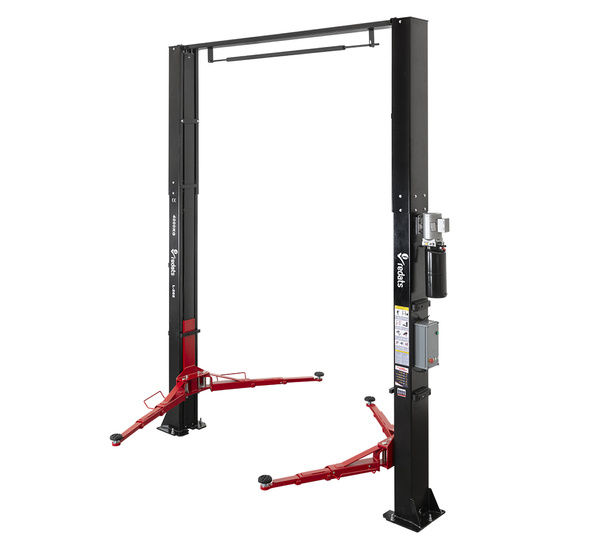

Two-post car lift with upper beam, automatic, 400V, 4T – REDATS L-265

  • Automatic car lift with top beam. It gives plenty of freedom when moving under the lifted vehicle.
Delivery soon
This product is not available in a stationary store
Safe shopping

What has changed compared to the previous model (L-260)?

First of all, the L-265 lift has a significantly higher structure – 4350 mm, which is over 4 meters! With a maximum lifting height of 1945 mm, this gives a clearance of 2405 mm. Thanks to that, it allows comfortable work even with taller vehicles.

On one hand – the lack of a bottom beam makes it possible to drive in with low cars.

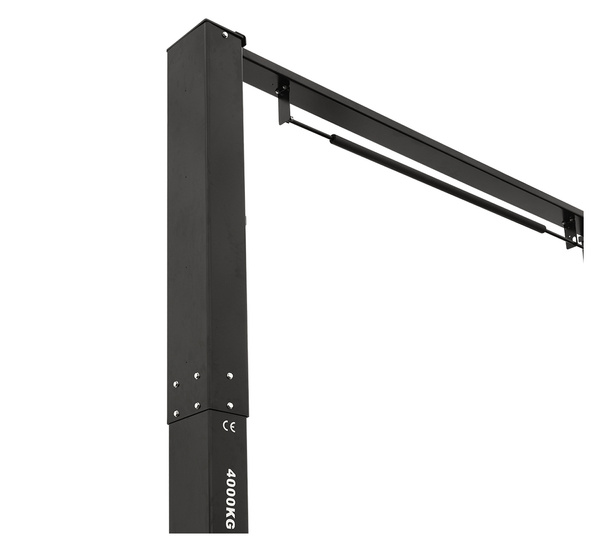

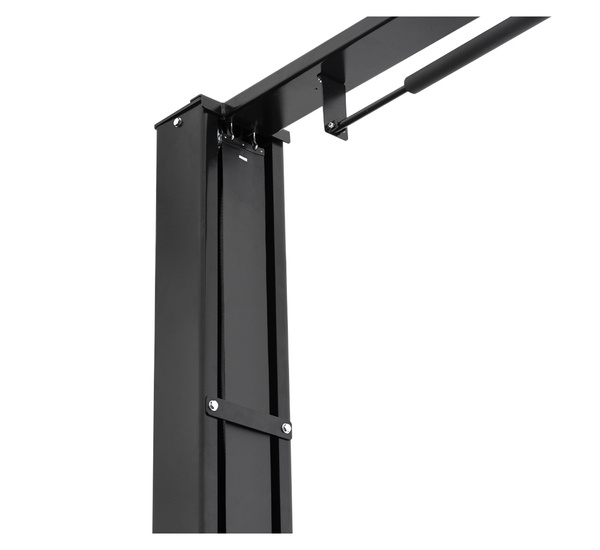

On the other – the top beam placed so high doesn’t limit work on taller vehicles.

That’s the main difference compared to the L-260 model.

Recommend it to your clients if they’re looking for a lift that:

  • has no bottom connection – allows for free movement of tool trolleys under the vehicle,
  • lifts up to 4 tons – suitable for both passenger cars, SUVs and some commercial vehicles,
  • ensures comfortable access to the chassis and suspension,
  • enables servicing taller vehicles.

Key specifications:

  • Type: automatic
  • Dimensions (W x H): 3560 x 4350 mm
  • Lifting time: approx. 50 seconds
  • Lifting capacity: 4000 kg (4 tons)
  • Lifting height: 1945 mm

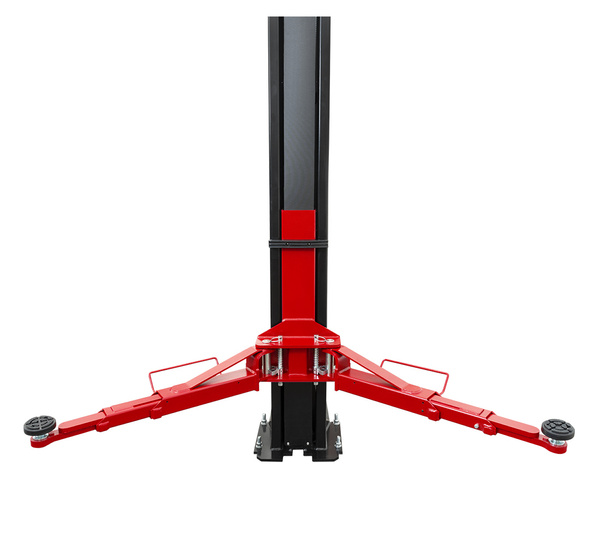

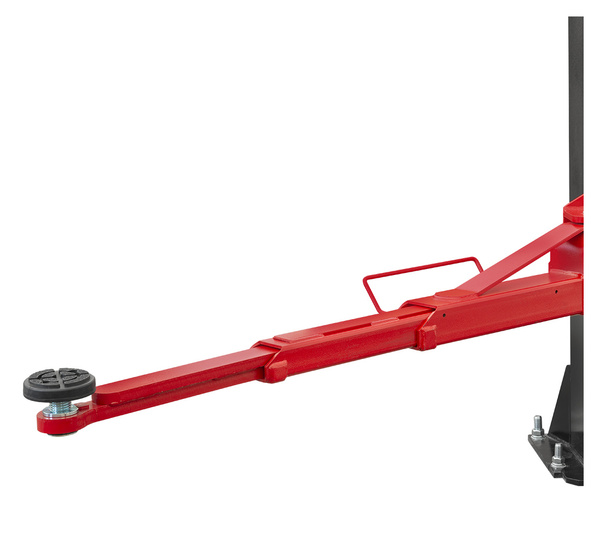

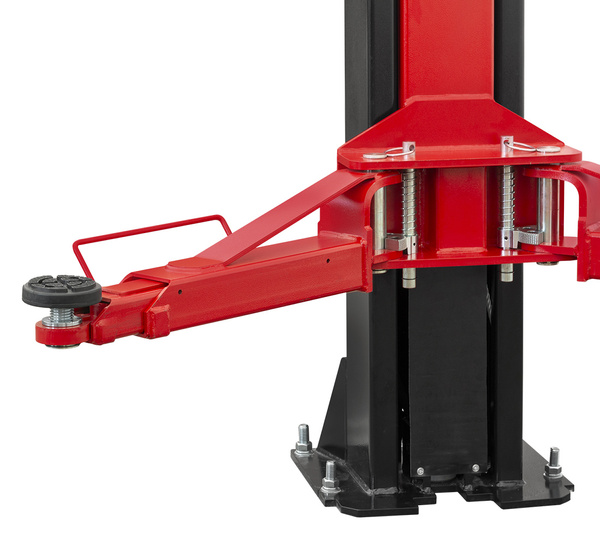

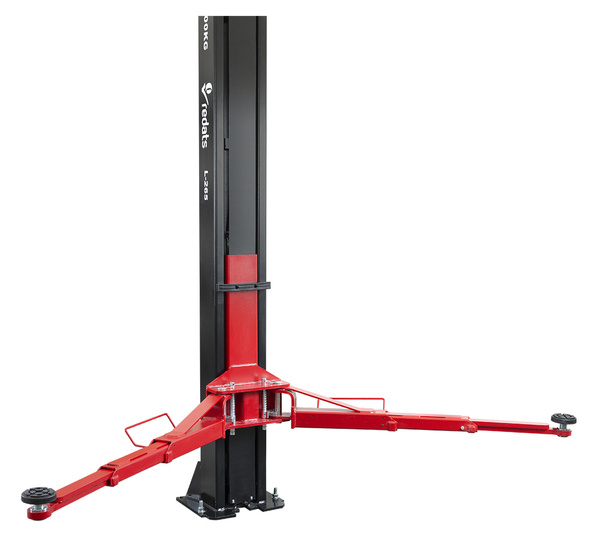

  • Arm length range: 700–1330 mm

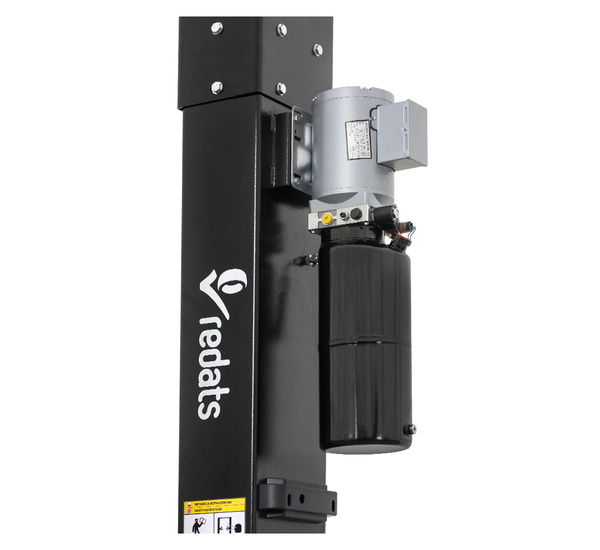

  • Motor power: 2.2 kW
  • Telescopic arms: YES
  • Power supply: 400V
  • Crossbar: Top
  • Minimum floor thickness: 30 cm
  • Limit switch: YES
  • Weight: 685 kg
scheme

Effortless operation

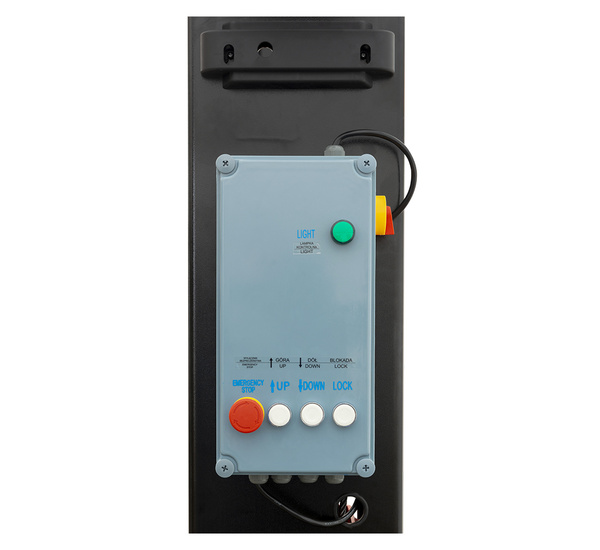

Positioning the lift takes less than a minute. To raise the vehicle, simply press the lift button. To lower it, press the lower button.

Easy to explain, quick to demonstrate – a smooth user experience for any car service.

Built to last

Top-quality components (durable chain and control elements) and precise craftsmanship ensure years of reliable operation.

Why add REDATS L-265 to your offer?

It’s a versatile, high-performance lift that meets the needs of most garages. Its robust build, high clearance, and lack of a lower beam make it a top choice for customers working with both standard and taller vehicles. A dependable model your clients will appreciate – and one that can boost your sales potential.

cars
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Technical specification
Brand
Symbol
15-02-27
Producer code
5902730168966
maximum capacity
4 tons
Type
Automatic
Power source
400V
Arm length span
700 - 1330 mm
Frame
Upper Frame
Reinforcing frame
no
Time to full rise
50 seconds
Lifting height
1945 mm
Floor thickness
30 cm

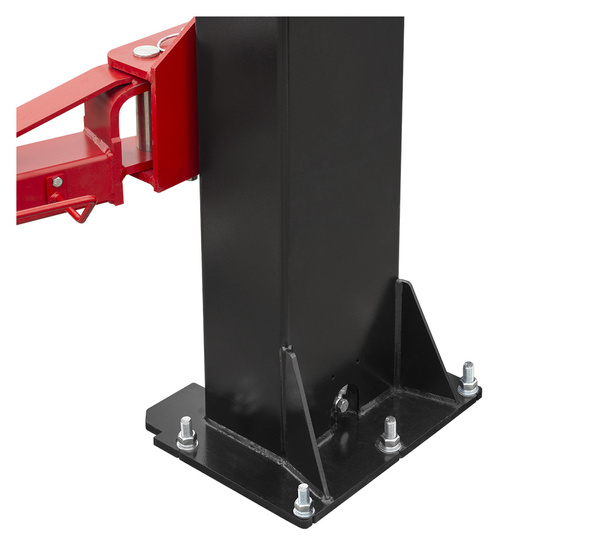

Column base size
380 x 450 mm
Safety switch
yes
Power
2200 W
Folding arms
YES
Anchors in set
non-certified
OK with Technical Supervision Office requirements?
YES
Weight
685 kg
Dimensions (width x height)
3560 x 4350 mm
Warranty
24 months
Warranty (for companies)
12 months
