Valve for pressure sensor TPMS-7
Valve for pressure sensor TPMS-7
Valve for pressure sensor TPMS-7
Valve for pressure sensor TPMS-7
Valve for pressure sensor TPMS-7
Valve for pressure sensor TPMS-7
Valve for pressure sensor TPMS-7
Rim hole diameter11.3 mm + 0.4 mm
Height56 mm

Valve for pressure sensor TPMS-7

For quotation contact us

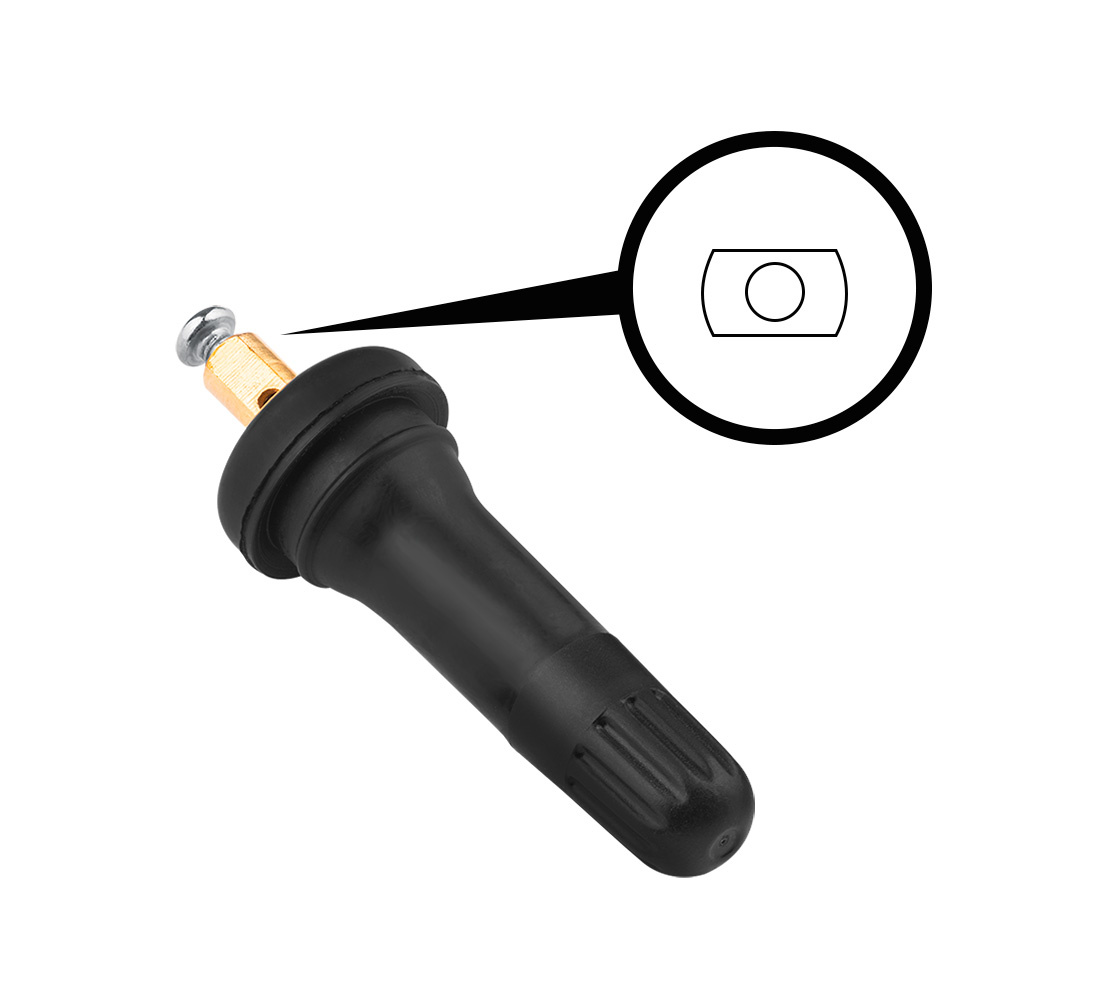

The TPMS-07 valve for the TPMS Schrader Snap-in REV4 systems. They are a perfect replacement for the OEM valves used in pressure monitoring systems. It can be used for any ALU rim with the valve stem of 11.3 mm. They are perfectly tight, so they could be used for precise pressure readings. The valve is composed of the following parts

  • a core inside a rubber cushioning, to make it easier to push it through the rim
  • plastic cap
  • spring insert
  • a threaded stem, to be installed with the pressure sensor
  • a screw to be connected with the sensor

The valve is compatible with the Schrader Snap-in REV4 sensors (length: 60mm)

The Schrader Snap-in sensors are mainly used in cars by: Chrysler, Citroen, Dodge, Jeep, sample numbers: 9683420380, 56029398AA-AB

Brand
Symbol
03-00-83
Producer code
5902730110118
Height from the rim
33 mm
Rim hole diameter
11.3 mm + 0.4 mm
Coating
Rubber
Height
56 mm
Application
TPMS Schrader Snap-in (selected models)
Valve head diameter
16 mm
Warranty
24 months
Warranty (for companies)
12 months
