Scissor lift - REDATS L-540 + Mobile kit for scissor lifts

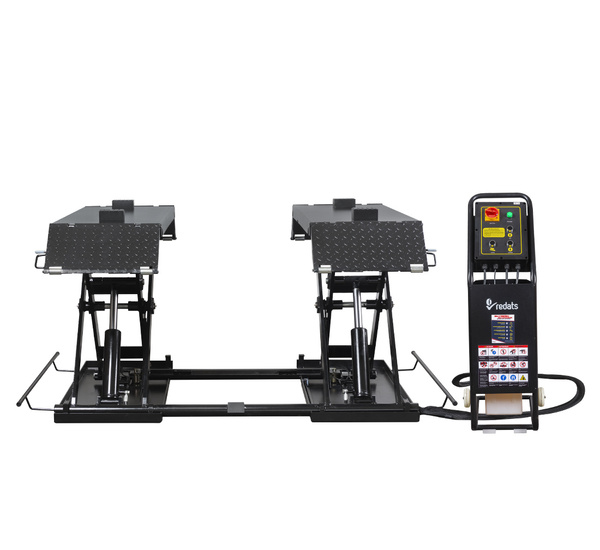

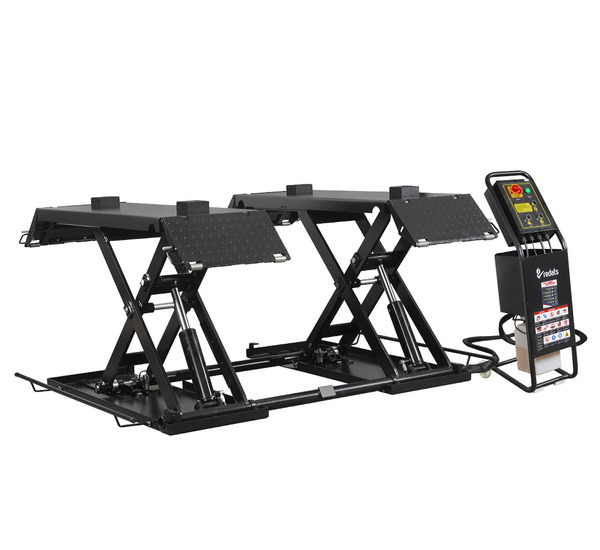

Scissor lift - REDATS L-540

Key benefits

• 3-ton lifting capacity

Suitable for most passenger cars and light commercial vehicles commonly serviced in automotive car services.

• 1000 mm lifting height

Provides comfortable access to the underbody, brakes and suspension - ideal for everyday mechanical work.

• Fast working cycle – 60 seconds

Lifting and lowering takes about one minute, helping workshops maintain an efficient workflow without delays between vehicles.

Vehicle compatibility

Thanks to its dimensions, the lift can accommodate longer vehicles:

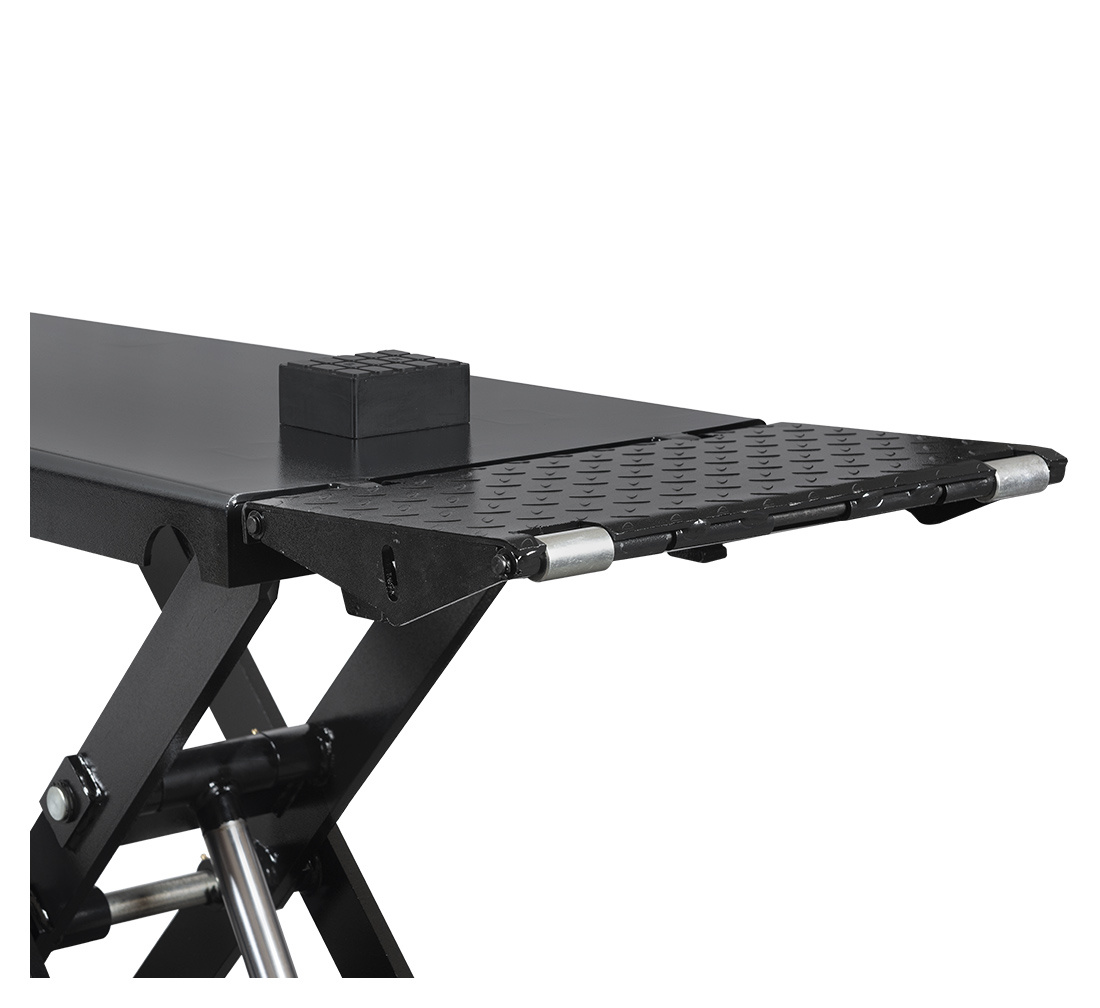

• Platform length: 1400 mm
• Total length with ramps: 2030 mm

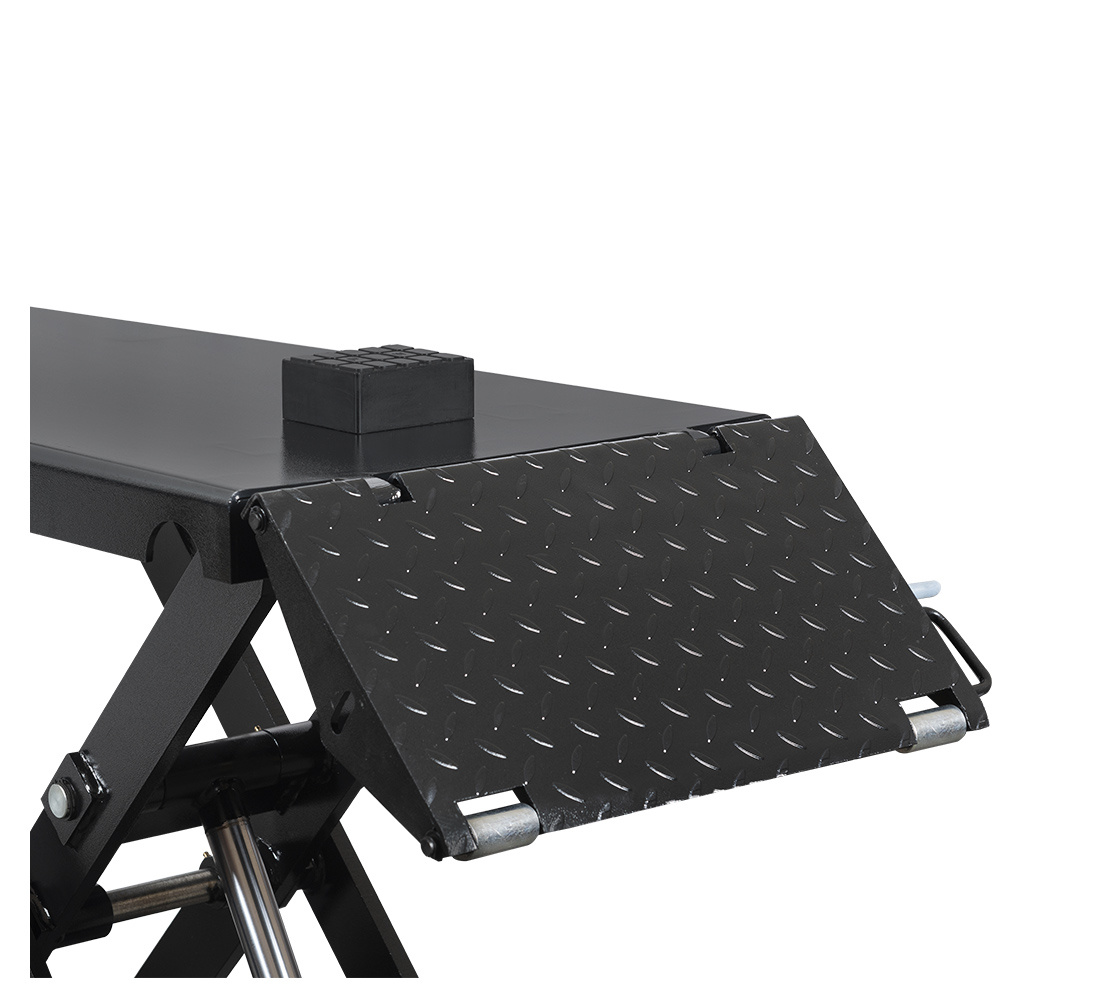

• Width of a single ramp: 530 mm
• Total ramp width: 1760 mm

Safety and ease of use

• Upper limit switch

Automatically stops the lift at maximum height.

• Safety bars on both sides

Indicate a safe zone during lowering.

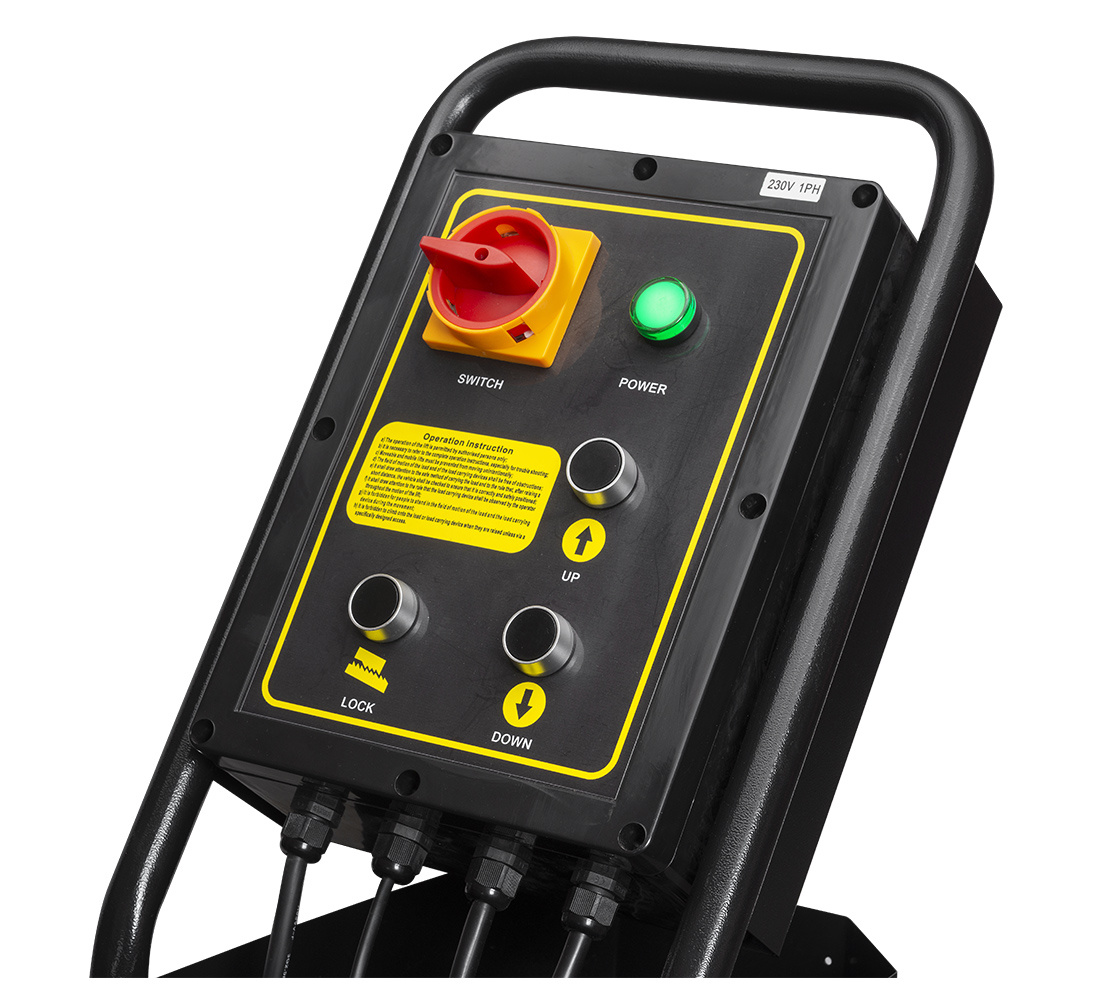

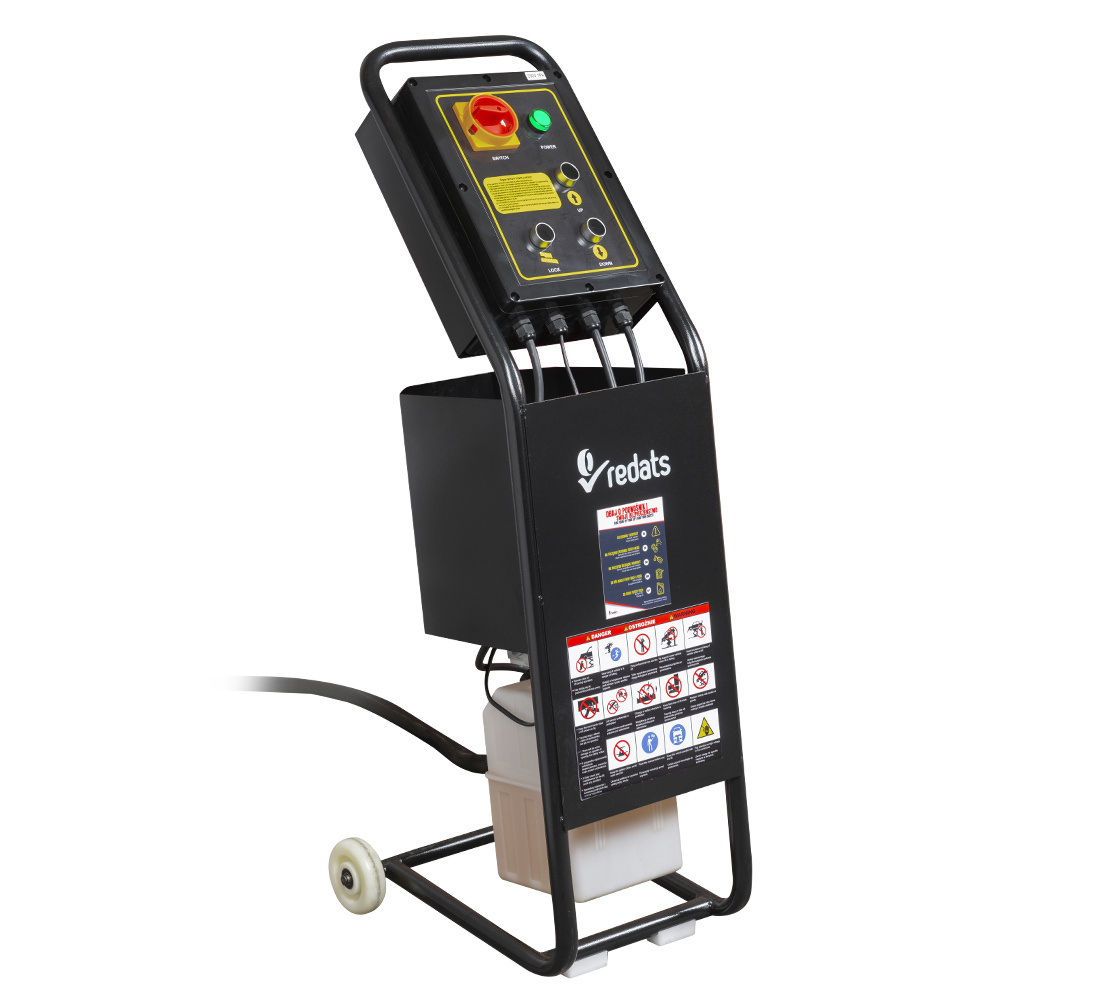

• Control panel on wheels

Compact and mobile - easy to position wherever needed.

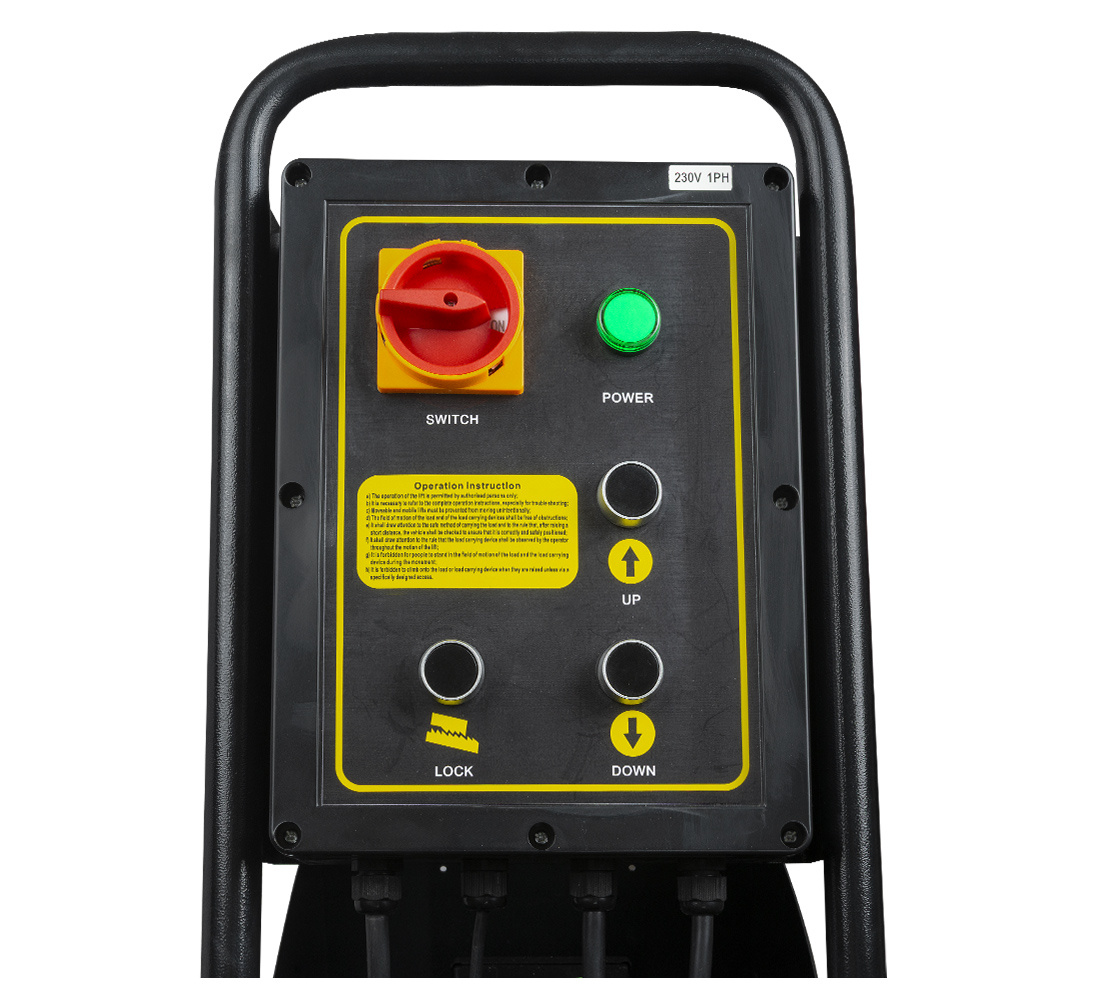

• Large, clear buttons (UP, DOWN, LOCK)

Support intuitive operation and improve workplace safety.

Construction

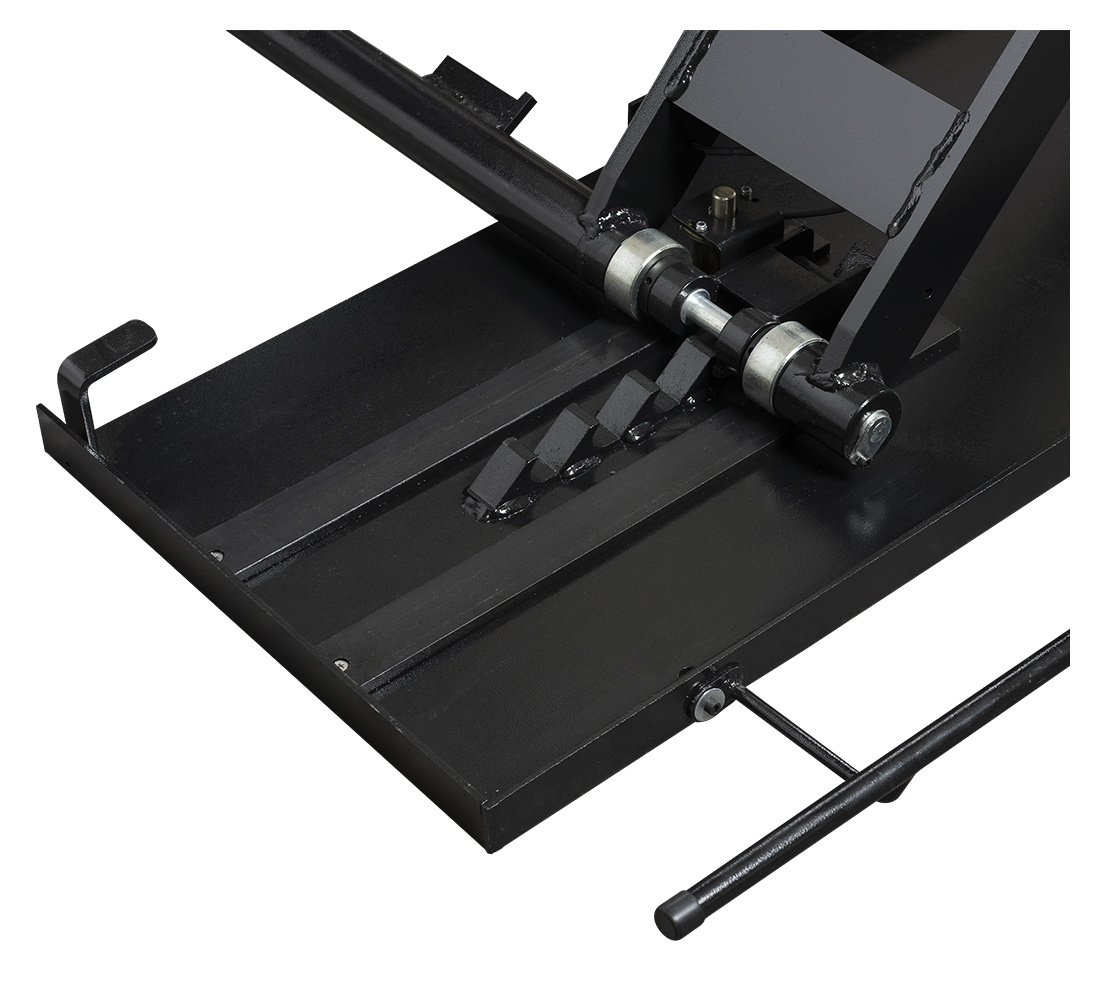

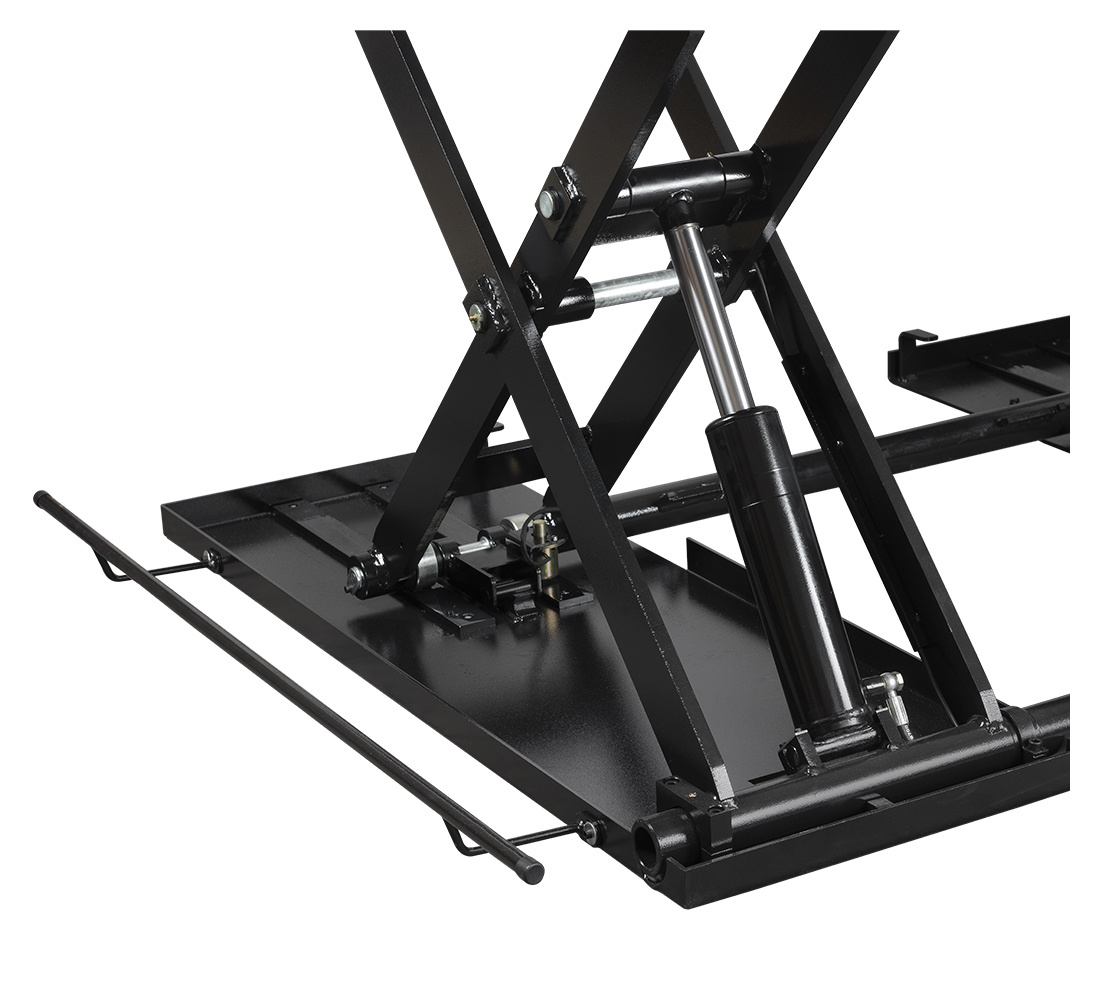

The hydraulic drive ensures smooth and consistent platform movement. A wide, heavy-duty base provides stable support even at full load. The platforms remain stable without sway or flexing - even at 3 tons.

Included in the set

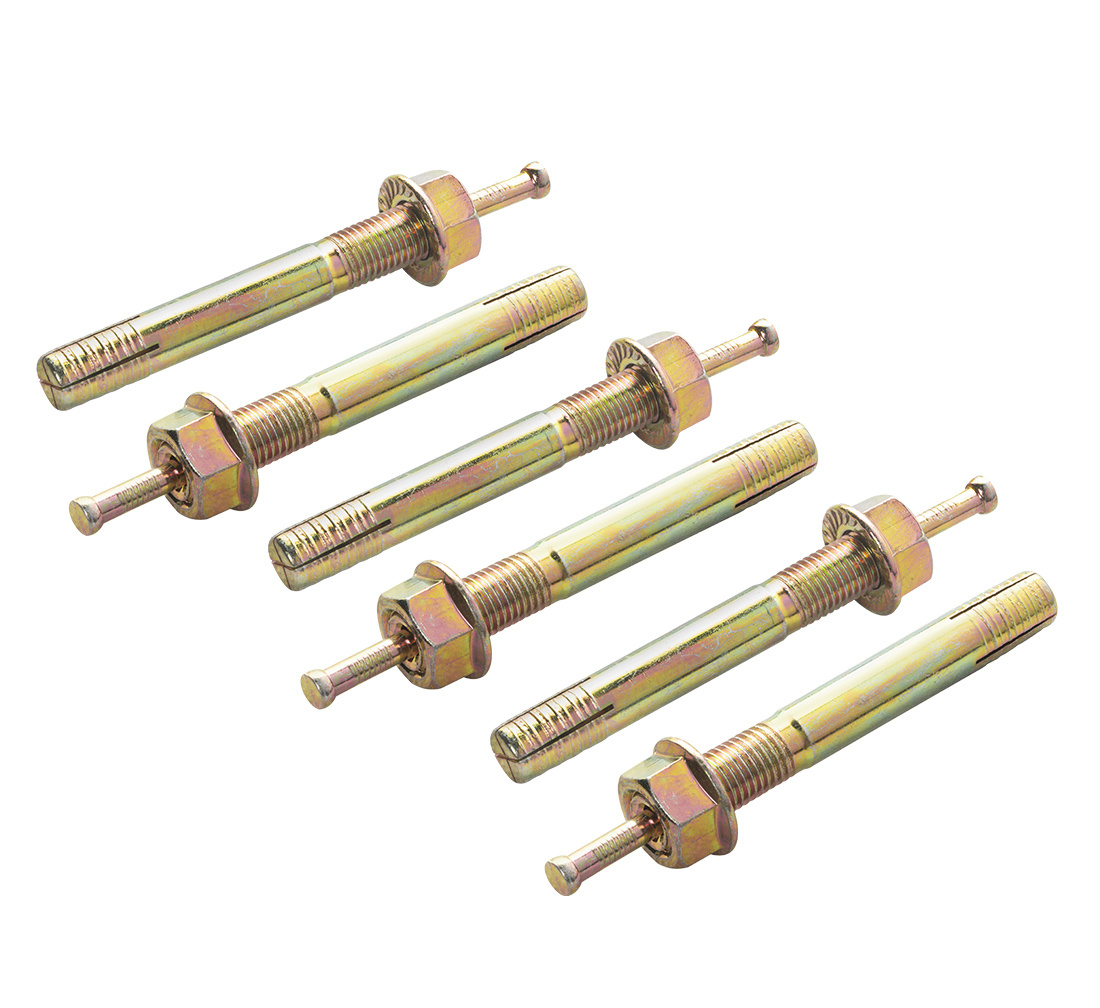

• 6 mounting anchors
• 4 support pads (120 × 100 × 50 mm)
• User manual

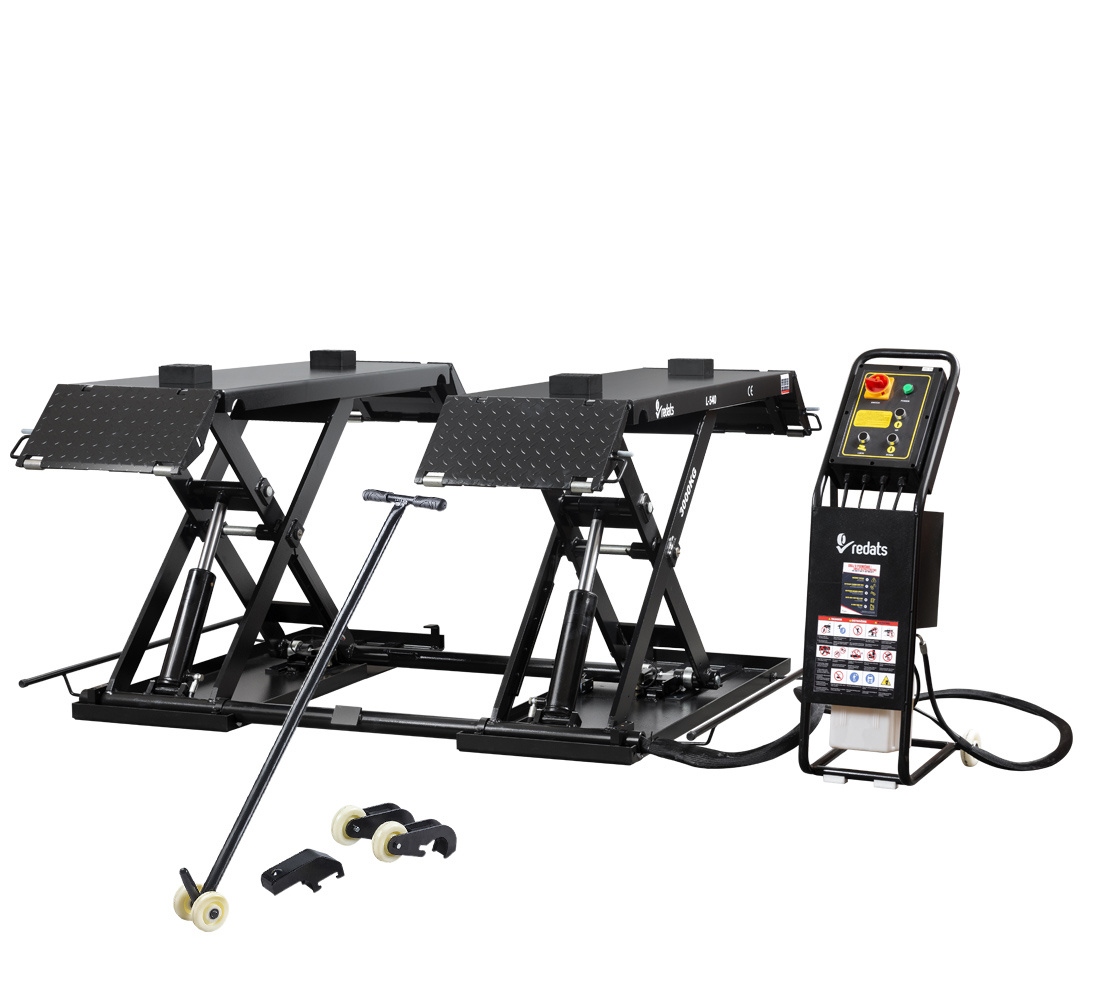

Mobile kit for scissor lifts Redats L-540 / L-540F

Why include it in your product range?

The kit enables smooth and controlled repositioning of the lift to the most convenient location at any given time.

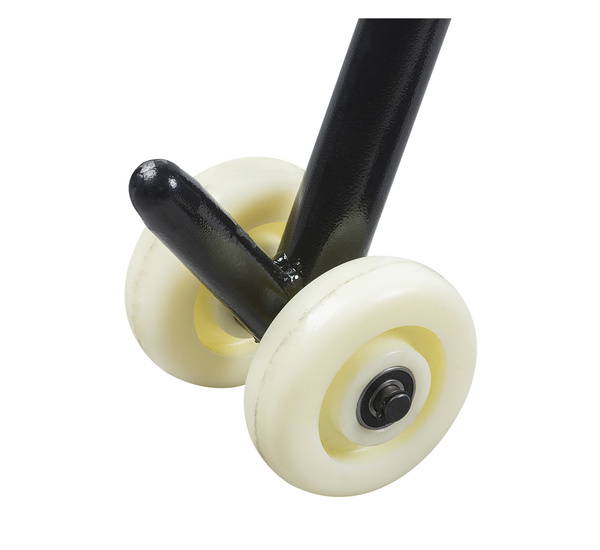

• 100 mm diameter wheels are suitable for standard car service floors, while the steel construction remains rigid and does not deform during manoeuvring.

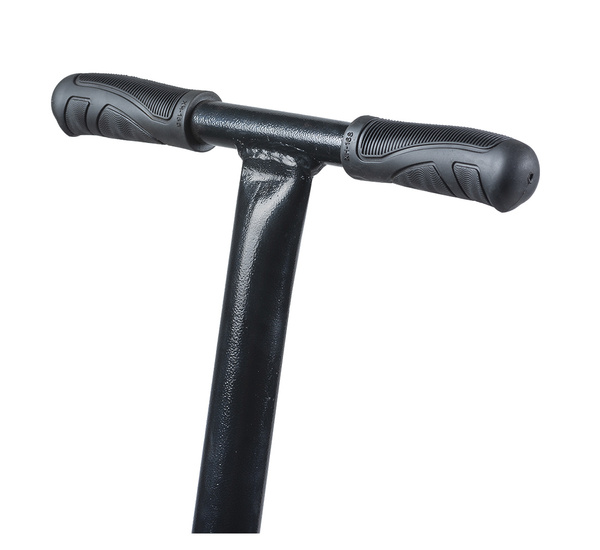

• The 1180 mm handle provides effective leverage, allowing the lift to be moved in a predictable and controlled manner without excessive force.
• Rubber, anti-slip grips ensure a secure hold and better control while guiding the lift.
• The robust steel structure and solid welds contribute to stable operation during movement.

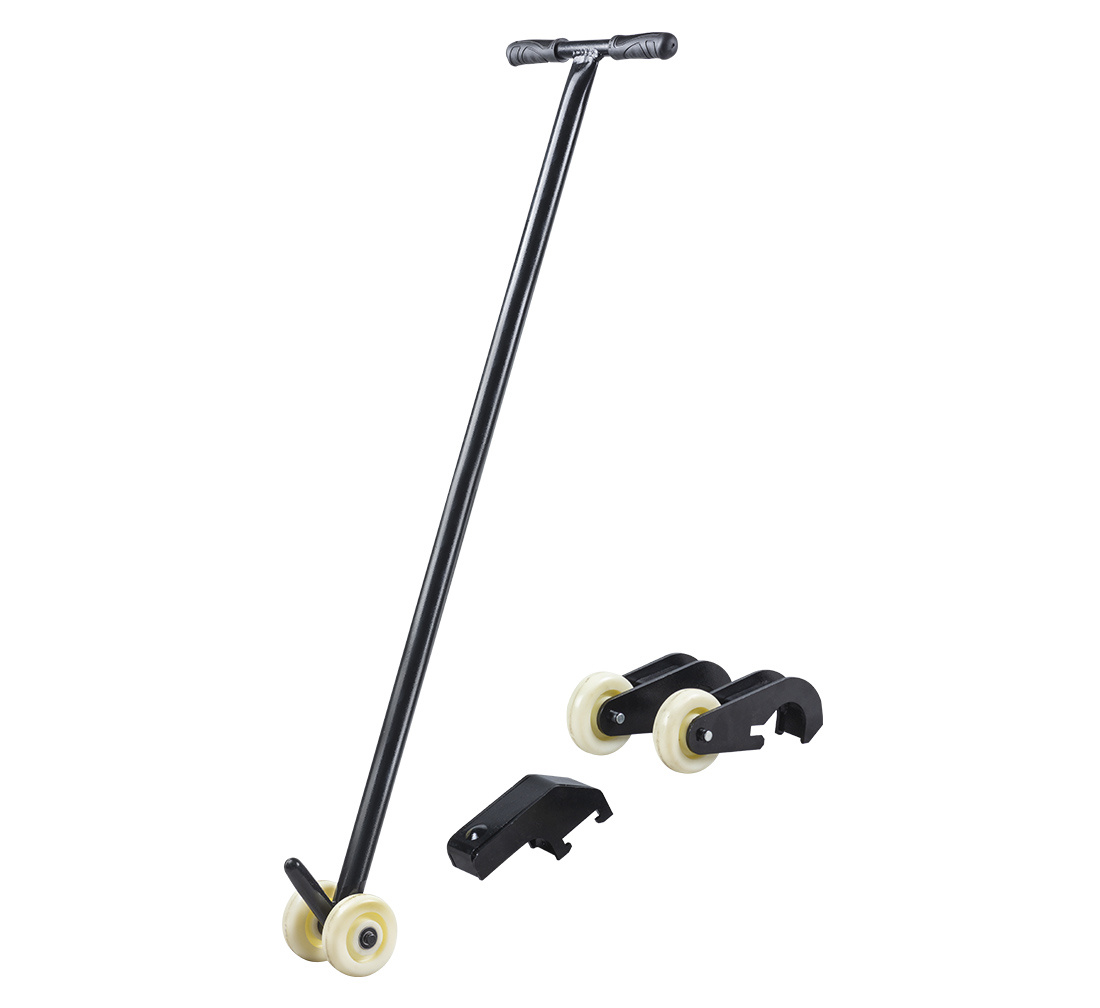

What’s included in the kit?

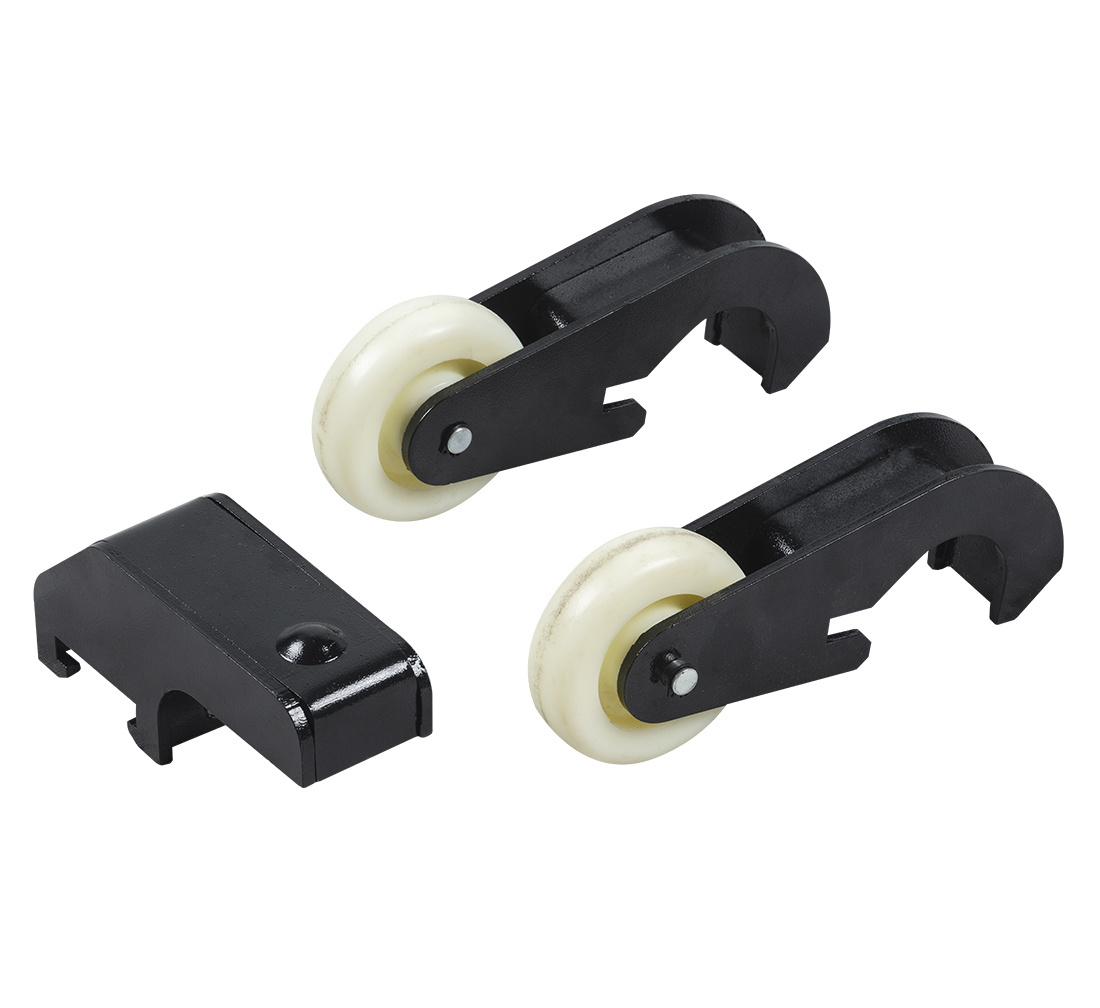

• Guide handle with wheels
• 2× rear adapters with wheels
• Adapter for the guide handle



Additional information

The kit is compatible only with REDATS L-540 and L-540F scissor lifts.

All components are precisely matched to the lift structure, ensuring quick installation with no modifications required.
